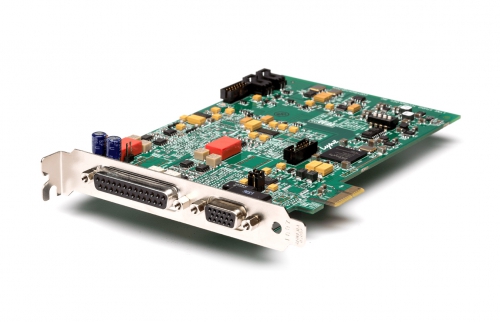

The two analog, two digital PCI express card.

The E22 PCI Express card is designed to satisfy the most demanding professional recording and broadcast studio requirements. Built upon the legacy of the LynxL22 card, the E22 takes a leap forward to offer the highest performance A/D and D/A conversion system ever incorporated into a PCI Express card.

Since 1998, Lynx has provided high-reliability add-in cards engineered for 24/7 operation. The E series improves upon this tradition with upgraded enhancements for I/O protection and shielding.

Key features

Two channels A/D and D/A conversion

Two channels of AES3 or S/PDIF I/O

Sample rates of 44.1, 48, 88.2, 96, 176.4 and 192kHz

Extremely low-jitter SynchroLock™ sample clock generator

Fixed or adjustable trim level on all analog I/O’s, relay controlled

FPGA-based on-board hardware mixing

V2 DMA Engine promotes extremely low-latency operation

Designed and built in the USA

The E22 is ideal for:

  • Audio production. The E22 is the best sounding 2 channel PCIe card for DAW recording and playback.
  • Broadcast applications requiring 24/7 flawless operation
  • Capturing and archiving historic and classic material with extreme accuracy and transparency
  • Audio playback.  The E22’s pristine audio quality makes it ideal for the most demanding high-end hi-fi systems
  • Audio measurement. As a precise audio instrument the E22 is exceptionally accurate and transparent
  • Medical, military and industrial applications that require full audio spectrum capabilities and extreme reliability and precision

The E22 card utilizes sophisticated design methodologies to achieve high performance levels. Components are meticulously chosen to support low noise and distortion. Circuit topologies are compact and cancel external noise pickup. Capacitors with solid dielectrics provide high reliability and long life. Considerable effort is applied to PCB layout which focuses on component placement and routing of traces, as well as copious use of copper planes for shielding and power distribution.

The use of field-programmable-gate-arrays (FPGA) is another core technology pioneered for use in audio devices by Lynx. The E series uses the latest devices with a wealth of resources for parallel processing in our 16 X 8 mixer and V2 DMA engine which maximizes throughput on the PCIe bus while minimizing CPU workload. As always, FPGA’s allow for field-upgradeability to add features in the future.

Features:

  • Two channels A/D and D/A conversion
  • Two channels of AES3 or S/PDIF I/O
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Extremely low-jitter SynchroLock sample clock generator
  • Fixed or adjustable trim level on all analog I/O’s, relay controlled
  • Automatic output muting on power on/off (de-thump)
  • FPGA-based on-board hardware mixing
  • V2 DMA Engine promotes extremely low-latency operation
  • Drivers for Macintosh OS X, Windows 7, 8, 8.1, 10 & 11. Thunderbolt compatible.
  • Lynx Mixer application
  • Designed and built in the USA
  • Cables Sold Separately
  • CBL-L22Audio for analog I/O
  • CBL-L22Sync for digital and word clock I/O
  • CBL-XMDR18 S/P DIF adapter for digital in to S/P DIF
  • CBL-XFDR18 S/P DIF adapter for digital out to S/P DIF

• Suggested Retail Price: US $799.00

Technical specification

Analog I/O

  • Two input channels / two outputs channels

  • TYPE: Electronically balanced or unbalanced, XLR connectors

  • LEVEL: +20dBu full-scale or variable +8.23dBu to +24dBu full-scale; jumper selectable

  • INPUT IMPEDANCE: Balanced mode: 24 kohm Unbalanced mode: 12 kohm

  • OUTPUT IMPEDANCE: Balanced mode: 100 ohm Unbalanced mode: 50 ohm

  • OUTPUT DRIVE CAPABILITY: 600 impedance, 0.2 µF capacitance

  • A/D AND D/A TYPE: 24-bit, multi-level, delta-sigma

  • SAMPLE RATES: All standard sample rates up to 192kHz

Line Out (includes D/A Conversion)

  • Analog performance specs measured at 44.1 kHz sample rate, 24-bit, card installed in computer

  • FREQUENCY RESPONSE: 20 - 20 kHz, ± 0.05 dB

  • DYNAMIC RANGE: 120 dB

  • CHANNEL CROSSTALK: <-130 dB, 1kHz signal @ -1dBFS

  • THD+N: -108 dB (0.0004%) @ -1 dBFS 1kHz signal, 22Hz - 22kHz BW

Line In (includes A/D Conversion)

  • Analog performance specs measured at 44.1 kHz sample rate, 24-bit, card installed in computer

  • FREQUENCY RESPONSE: 20 - 20 kHz, ± 0.05 dB

  • DYNAMIC RANGE: 117 dB

  • CHANNEL CROSSTALK: <-128 dB, 1kHz signal@-1dBFS

  • THD+N: -111 dB (0.0003%) @ -1 dBFS 1 kHz signal, 22Hz - 22kHz BW

I/O Type

  • Four input channels / four outputs channels 24 bit AES/EBU or S/PDIF format jumper selectable, transformer coupled, XLR connectors.

Sample Rates

  • 44.1, 48, 88.2, 96, 176.4, 192 kHz

Number

  • EXTERNAL: one input and output, BNC connectors on Sync Cable

  • INTERNAL: one input and output on board mounted headers

Type

  • Word Clock

Level / Impedance

  • TTL / 75 ohms

Windows Drivers

  • Windows 10 / 11: MME / DirectSound / WASAPI (WaveRT); ASIO 2.3 Macintosh Drivers.

macOS Drivers

  • Core Audio for OS X 10.8 and higher. Rev C cards support macOS 12 Monterey or higher.

Lynx Mixer

  • Provides complete control of digital mixer and all hardware settings.

Channel Capacity

  • 16 input channels, 8 sub outputs

Metering Peak

  • Levels to -120 dB on all inputs and outputs

Monitor Mixing

  • 16 x 8 with no limitations

Audio Port

  • Bracket-mounted 25-pin female D-sub connector for analog audio I/O

Sync Port

  • Bracket-mounted 15-pin high-density female D-sub connector for digital input and output, word clock in and out

Cables (Optional)

  • E22 Audio Cable (CBL-L22Audio) is a 25-pin male D-sub to 2 male and 2 female XLR connectors on six-foot shielded twisted pair cabling

  • E22 Sync (CBL-L22SYNC) is a 15-pin high-density male D-sub to 1 male and 1 female XLR on six-foot shielded twisted pair cabling and (2) female BNC connectors for Word Clock I/O on six-foot 75 ohm coaxial cabling

PCI Express Bus

  • x1

Power

  • +3.3V @ 630 mA, +12V @ 500 mA

Shipping Weight

  • 1 pound

Data Transfers

  • Highly efficient Lynx V2 DMA engine; bus mastering

Certifications

  • CE and FCC Class B RoHS Certified

E22 analog I/O audio cable

The optional E22 analog I/O audio cable (model CBL-L22Audio) is a 25-pin male D-sub to 2 male and 2 female XLR connectors on six-foot shielded twisted pair cabling

Buy the E22 analog I/O audio cable HERE

E22 digital I/O and sync cable

The optional E22 digital I/O and sync cable (model CBL-L22SYNC) is a 15-pin high-density male D-sub to (1) male and (1) female XLR on six-foot shielded twisted pair cabling and (2) female BNC connectors for word clock I/O on six-foot 75 ohm coaxial cabling.

Buy the E22 digital I/O and sync cable HERE
